If you are into gardening or maintaining a lawn — whether it’s a small backyard, a vegetable garden, or a larger green space — you understand how time-consuming and demanding watering can be. You want your plants to get consistent moisture, roots to grow deeply, and you don’t want to waste water or spend hours every few days hauling hoses or turning sprinklers on and off manually.
That’s why an automatic sprinkler timer can be a great tool. In this review, I examine one such device: the Orbit 57894 4-Station Outdoor Swing Panel Sprinkler System Timer. I recently tried this timer in my own garden and lawn setup, and I’m sharing a full, honest review based on my experience.

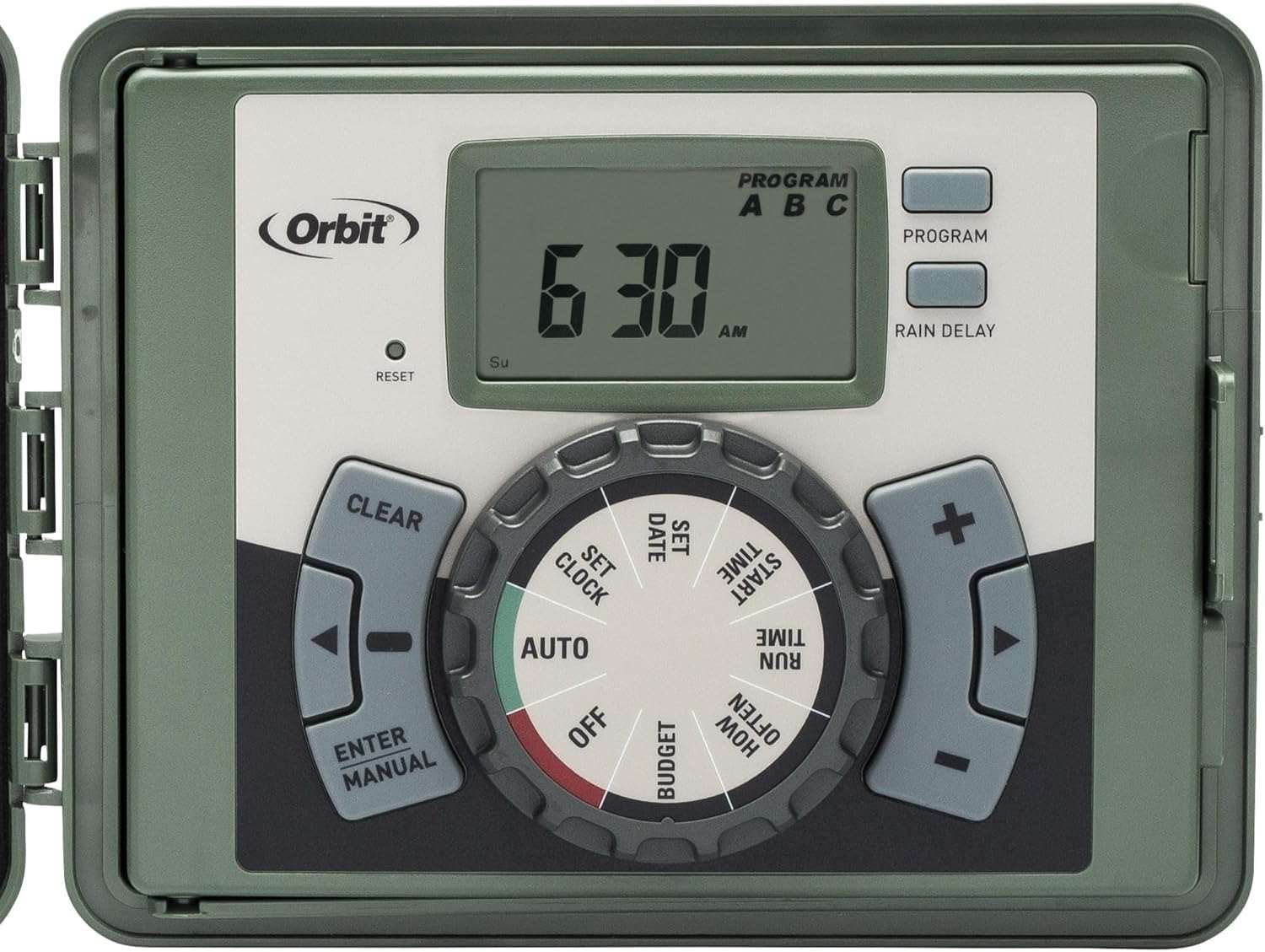

What Is Orbit Outdoor Swing Panel Sprinkler Controller?
The Orbit 57894 is an automatic sprinkler system timer / controller. In simple words: it is a device that connects to the sprinkler valves of your lawn or garden irrigation system, and automatically turns the water on and off on a preset schedule. Instead of manually running sprinklers or hoses, you program the timer — tell it when to start, how long to run each zone, what days to water, and the timer does the rest.
Such timers are often part of a larger “automated irrigation system,” which can include valves, pipes or drip lines, sprinkler heads, and sometimes sensors (e.g. rain sensors or soil moisture sensors). The main benefit: you get consistent, efficient watering without daily manual effort. Here are the main features and specifications of the Orbit 57894 timer:
It’s a 4-station timer, meaning it can control up to 4 zones (or valves) by default — useful when different parts of your garden need water at different times.
It comes in a weatherproof, locking cabinet (with two keys), allowing both indoor and outdoor installation — useful if you have an external pump or valve box outside or prefer to keep equipment inside for protection.
The design features a swing-out panel and push-wire terminals, making wiring and installation relatively straightforward — even for DIYers in many cases.
The timer uses “Easy-Set Logic” programming. You have up to three independent watering programs (A, B, C), and each program can have up to 4 start times per day. This allows for flexible watering schedules — for example, early morning and late afternoon watering, or multiple cycles in a day for new lawns or certain types of plants.
It supports “water budgeting” — a feature that lets you adjust total watering duration across all zones / stations by a percentage (from 10% to 200%) depending on season or rainfall.
There is a manual watering mode too: you can manually trigger any station or all stations without disturbing your preset automatic schedule. Handy for spot watering or extra watering when needed.
A rain-delay feature lets the system skip watering for 24–72 hours — useful when it has rained recently, avoiding over-watering.
It’s compatible with standard 24 VAC valves from Orbit and many other major brands, which makes it versatile and suitable for replacing older timers in existing irrigation systems.
In terms of physical specs: the unit is compact — roughly 3.78″ deep × 7.4″ wide × 8.66″ high.
Pros & Cons of Orbit Swing Panel Sprinkler Controller
| Pros | Cons |
|---|---|
 Good build quality and simple yet effective design — sturdy plastic housing, swing-panel door for wiring, push-wire terminals for easy wiring and setup. |
 Setting and adjusting times can be a bit tedious — changing start time requires holding down arrow buttons. |
| Flexible scheduling — multiple programs, start times, run times and water-budgeting for seasonal adjustments. |
Memory backup uses a CR2032 battery — settings may reset during power outages if battery is weak. |
| Manual watering option + rain delay — helpful for extra watering or skipping rainy days. |
Limited programming flexibility per station — cannot set completely independent schedules. |
| Indoor or outdoor installation — provides more placement flexibility. |
Documentation/manual may be basic — some situations require extra guidance. |
| Compatible with standard solenoid valves — easy to integrate with existing irrigation systems. |
Not ideal for very large or complex irrigation systems — only 4 stations available. |
| Good value for price — affordable automation compared to manual or mechanical systems. |
Why Swing Panel Sprinkler Controller Matters?
Water management is one of the most critical factors in agriculture, gardening, and landscaping. Over-watering wastes water and can cause root rot or leaching of nutrients; under-watering stresses plants and reduces yield. Automatic controllers — like the Orbit 57894 — help optimize irrigation timing and quantity, delivering water precisely when and where needed.
Uniform Water Distribution: Automated timers ensure each zone receives water according to its individual needs, leading to more uniform soil moisture across the garden/yard. This prevents dry patches and over-saturation.
Water Conservation: By precisely scheduling watering intervals and durations, and using features like rain delay and water budgeting, such systems help conserve water — an increasingly important factor in both domestic gardening and sustainable agriculture.
Reduced Labor & Human Error: Once programmed, you don’t need to manually turn sprinklers on/off or remember to water — reducing human error, neglect, or inconsistent watering patterns.
Optimizing Plant Health and Growth: Consistent, appropriate watering supports healthy root development, balanced growth, and better yields (whether lawn greenness or crop/vegetable yield in a garden).
With increasing concerns about water scarcity and sustainable farming, even small gardens and home farms benefit a lot from efficient, programmable irrigation controllers. Recent research and technology trends show a clear shift toward more efficient, sensor- or controller-based irrigation systems. For instance:
A 2025 paper introduced a multi-sensor, vision-based smart irrigation system that reportedly achieved a 30–50% reduction in water consumption compared to conventional flood irrigation, while maintaining > 92% water use efficiency.
Another 2023 study implemented a deep-reinforcement-learning-based irrigation control scheme (with sensors and automatic scheduling), demonstrating a ~9.5% water saving compared to traditional irrigation methods.

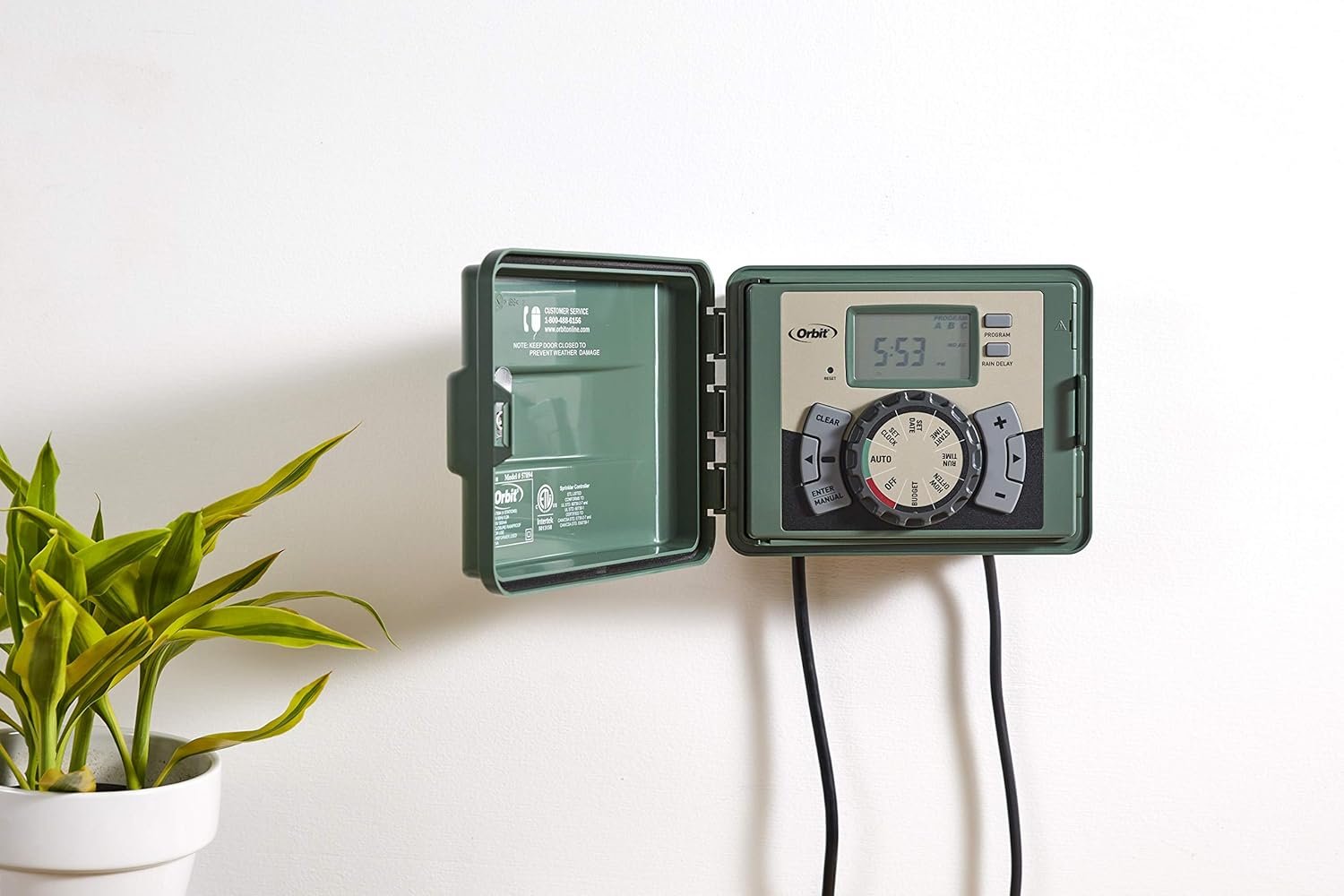

My Experience with Orbit Swing Panel Sprinkler Controller
Here’s how I used the Orbit 57894 timer — and what I observed in my own garden/lawn:
I installed the timer on an existing irrigation system that had previously used a mechanical timer. The system had multiple zones (lawn area, flowerbeds, vegetable patch), and I wanted a reliable and flexible controller to handle watering without daily manual work.
The installation was relatively easy. Because the timer supports standard 24 VAC valves, and the wiring was normal two-wire (common + station), I managed to connect everything without professional help. The swing-out panel made wiring straightforward, and the locking cabinet gave peace of mind.
Programming was simple: I used Program A for the lawn zone (watering early morning 15 minutes), Program B for garden beds (watering evening 10 minutes), and left Program C unused. I set the timer to run watering 3 times a week. The built-in rain-delay option also came in handy — after a good rainfall, the timer skipped its next watering session, so I didn’t have to manually intervene.
Over the months, I saw more uniform green grass, fewer dry patches, and healthier-looking plants compared to before — when watering had been irregular. The lawn and garden seemed to respond well to consistent moisture, and root growth appeared strong (plants seemed more resilient to dry periods).
The convenience was noticeable: once I set it up, I didn’t need to worry about watering, even if I was away or busy. Overall — for a home garden, small lawn, or modest agricultural/garden setup — the Orbit 57894 delivered exactly what I needed: reliability, automation, water efficiency, and peace of mind.
Performance of Orbit Sprinkler Controller
In day-to-day use, the performance of the Orbit 57894 timer was solid. The programming logic (Easy-Set Logic) worked as expected: stations turned on at the programmed times, ran for the correct durations, and shut off. Rain delay worked — I could skip watering automatically after rainfall. Manual watering mode worked when I needed to water a particular zone outside schedule.
Water distribution across zones felt fairly uniform (depending of course on sprinkler-head design, valve flow rates, and pressure), and I didn’t feel significant wastage or over-watering. Soil moisture remained relatively stable, even on hot days (especially when watering early morning).
However — some limitations remain, especially compared to more advanced “smart” controllers: you cannot individually program each station with different days/times (beyond the program structure), and there’s no sensor-based automation (soil moisture or weather-based). So the timer works best if you manually adjust schedules seasonally or based on weather manually. Still — for its price and simplicity — its performance is impressive and reliable.
Practical Tips for Orbit Outdoor Swing Sprinkler Controller
Based on my experience, here are some practical suggestions for gardeners, farmers, or homeowners considering using the Orbit 57894 or similar timers:
Set watering times for early morning or late evening — this reduces evaporation and ensures more water reaches roots. Avoid watering at midday.
Use the rain-delay feature when there’s rainfall — prevents over-watering and saves water.
Adjust watering duration seasonally — in cooler or rainy months, reduce watering time (use the water-budgeting feature). In hot dry seasons, you may increase duration but monitor soil moisture.
If you have different zones (lawn, garden beds, vegetables, trees), group zones by similar watering needs into one program. That way the schedule stays manageable even if you don’t have per-station complexity.
Check and replace the backup battery (CR2032) annually so that power outages don’t erase your programming.
When wiring, ensure proper valve compatibility — 24 VAC valves, proper common + station wiring, and safe electrical supply (especially if installing outdoors) — follow manufacturer instructions.
If you rely on frequent schedule changes (e.g. weekly adjustments) or have more complex watering needs, consider using a more advanced controller (smart/IOT-based).
Comparisons With Alternatives Sprinkler Controller
To understand where the Orbit 57894 stands, it’s useful to compare it with other types of irrigation controllers.
| Comparison Type | Manual Watering | Mechanical Timers | Smart Irrigation Systems | Orbit 57894 Advantage |
|---|---|---|---|---|
| Convenience | Requires daily manual labor | Basic scheduling, some manual adjustment needed | Fully automated with sensors and apps | Automates watering, reduces effort |
| Flexibility | Limited — you water manually | Limited to simple on/off schedules, fewer zones | Highly flexible, schedules per sensor data | Multiple programs, stations, start times, water budgeting |
| Water Efficiency | Risk of under/overwatering | Can waste water if schedule is fixed and not optimized | Optimized via soil/weather data, reduces waste 30–50% | Reduces water waste vs manual watering |
| Technology | None | Basic mechanical/electrical | IoT, sensors, AI-based scheduling | Simple digital controller with multiple zones< |
| Cost & Complexity | Cheapest, simplest | Affordable, moderately simple | Expensive, complex setup | Middle-ground — efficient yet affordable |
Final Recommendation
From my experience and based on available data and industry research, I recommend the Orbit 57894 4-Station Outdoor Swing Panel Sprinkler System Timer — especially for gardeners, homeowners, or small-scale farmers who want a reliable, affordable, and easy-to-use solution to automate irrigation.
It delivers solid performance, reduces manual effort, supports flexible scheduling, and helps water savings when used wisely (with rain delay and proper scheduling). For a reasonably priced timer (often much less expensive than high-end smart controllers), it offers a great balance of features.
However — if your garden or farm requires complex watering schedules, real-time adjustments to weather or soil moisture, remote control, or per-zone smart automation, you might want to consider a more advanced controller (smart/IOT-based).
For a typical home garden or small farm — especially where water conservation and consistent watering are priorities — Orbit 57894 is a very practical and worthwhile choice.
